If you are experiencing a CEL with a DTC code of P20BA or your vehicle is operating at a reduced power then you may have a problem with your diesel exhaust fluid reservoir heater,ย your DEF freezes at 12 ยฐF.
Replace your reductant heater to make sure your vehicle will not suffer from loss of power, excessive black smoke or reduction in fuel efficiency.
Fits The Following Ford 6.7L Vehicles
- 2011-2016 Ford F-250 Super Duty
- 2011-2016 Ford F-350 Super Duty
- 2011-2016 Ford F-450 Super Duty
- 2011-2016 Ford F-550 Super Duty
Replaces Part Numbers:
- BC3Z5J225KA
- BC3Z5J225L
- 904372
- Dorman 904-372
- EM1506URH
- 118826
Method of installation:ย
โ Remove the oil out let dust cover and return oil outlet dust cover on the flange, and then insert the oil seal ring and the return oil ring.ย
โกInstall the top seal ring into the urea tank.ย
โขInstall the Pre-heater into the urea tank and rotate it to the right by 10ยฐtolock the oil tank firmly.Then press the top cover into the urea tank port,and press it tightly with the seal ring of the top cover.ย
โฃScrew the flange plate to fix the top cover.ย
โคInstall Urea pump assembly.ย
โฅConnect vapour filtration lines,wiring plugs,etc.Use Ribbon to fasten the wiringย
โฆAfter all installed,it needs to meet certain conditions to make system work,so directly using computer to control the detection system to see whether it is working,or it is necessary to start the vehicle for a period of time to observe whether the system shows warning.ย

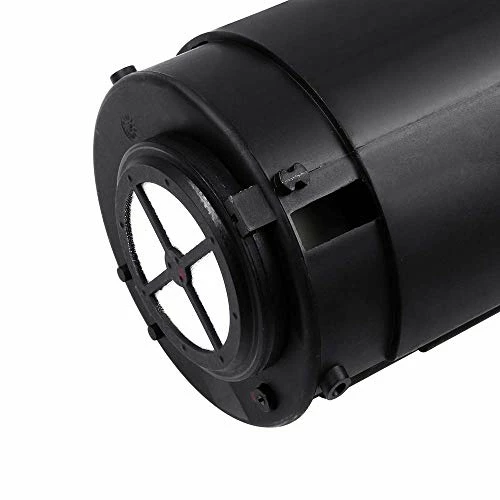

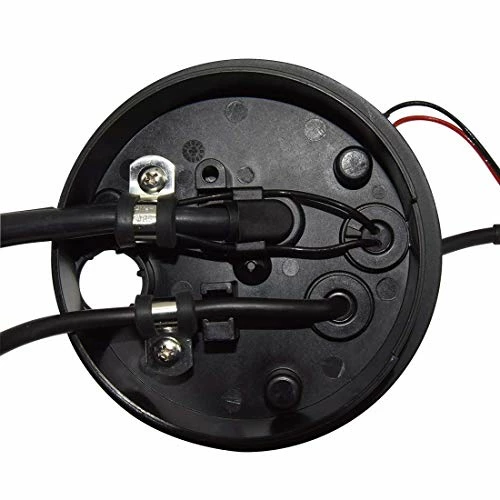

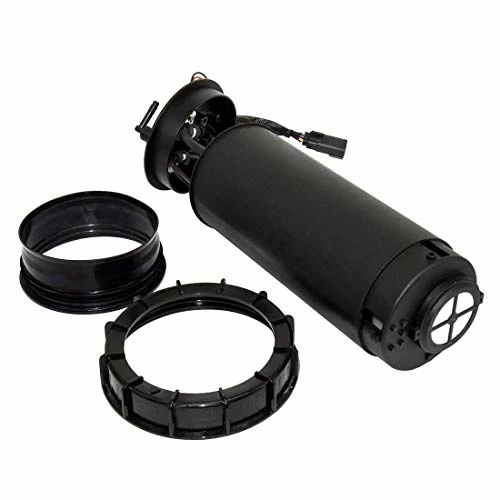

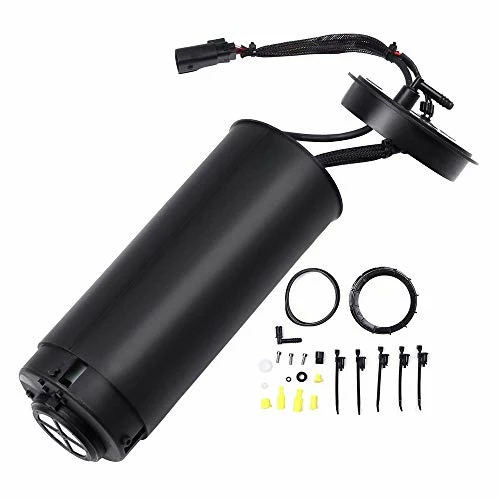

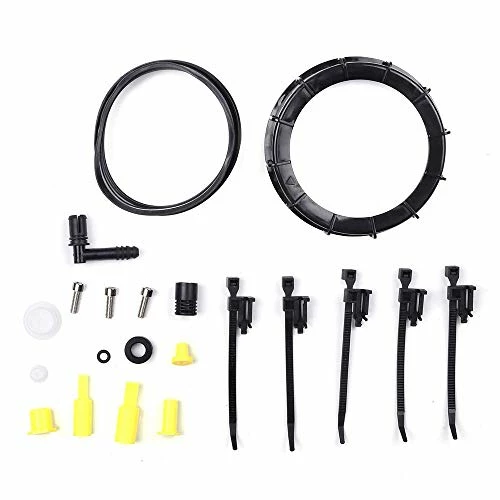

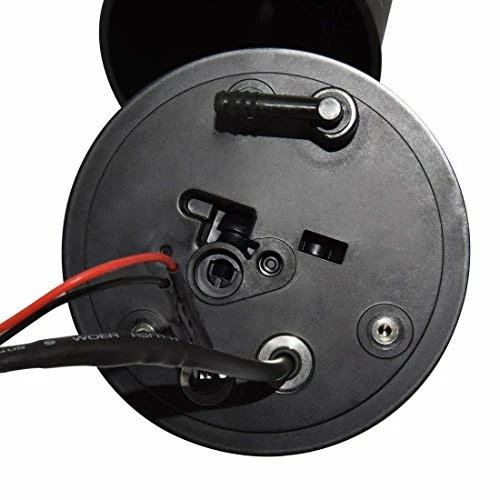

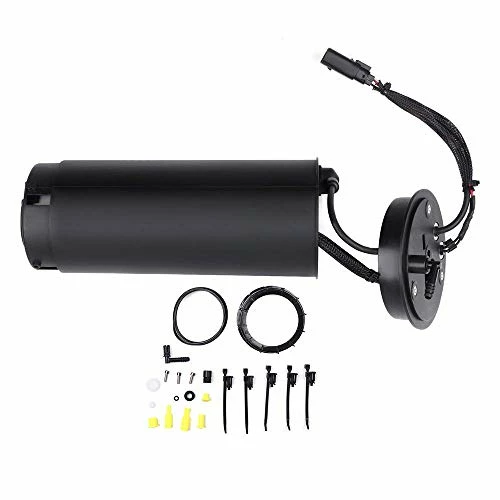

- Brand New DEF Diesel Exhaust Fluid Heater OEMย Partย Number BC3Z5J225KA BC3Z5J225L BC3Z5L227F Dorman 904372
- Fits 2011 Thru 2016 Ford F250 F350 F450 F-550 Super Duty With 6,7L Turbo Diesel Engine
- The diesel exhaust fluid reservoir heater can be easily located under the vehicle usually on the driver’s side inside the DEF tank.
- Coordinate with Urea Pump to output Vehicle Urea. Heat up Urea solution. Liquid sensor signal output. Temperature sensor signal output. Vapour filtration. Urea solution filtration.
- Contructed of premium material for long lasting durability and reliability,meets or exceeds OEM standards






















TCBTX –
Before buying make sure your truck is not included in the Ford extended service coverage to 120K miles for certain years. My model year was not in that additional coverage when my DEF heater failed. Product worked as described and check engine light turned off and has not came back on with over 2K miles so far since install. Total install time was about 2.5 hours. Hardest part was removing the skid plate then disconnecting and dropping the DEF tank to slide out from under truck. Helps to get your spare tire out of the way so you can see on top of DEF tank to undo the clips holding the wires and hoses. I did not remove the filler line from tank just from side of truck and feed it through to slide out tank. Just be sure not crimp the lines when reinstalling the tank.
Brad –
I installed the product and my check engine light turned off and the truck ran better for about 3 weeks my check engine light is back on and the code is the same the truck doesn’t run good in the cold I need to replace the unit again
Jason K –
Update: 13 months after installation the thing has failed. You get what you pay for.Why pay $300 for motorcraft parts. You know they’re all made in China. Seems to be working fine, fixed my code. Only time will tell for certain.
Dan –
So far so good (Knock on wood). Everything is as advertised. Bolted right up to my 2015 f250. After install I drive from Southern California to Salt Lake City and had zero issues. I would recommend it for sure.
Matt Gruber –
I purchased this unit in Feb 2012 for my 2015 F250. The product bolted right in and cleared my CEL right away. Now in March of 2021, the CEL is back on the for the same code (P20BA). The repair wasn’t too bad, but was hoping it would last more than this… Perhaps the Ford unit will provide better longevity.
LaBlue –
Just installed so this isnโt a long term review. All the pieces were included – thatโs a good thing. Ford want $350 for the part(made in Czech Republic). This was a third of that. Hopefully it will last longer than the OEM part.
Mr Bill –
I purchased this DEF Heater P/N BC3Z5J225KA Reductant Heater in Feb 2021 and installed it in my F250. Everything worked as billed until the end of Dec 2021. My F250 Ford Truck threw another check-engine light with the same code as last February code P20BA failure of reductant heater. it made it 10 month,
Stephanie M –
This part was installed by my friend who is a trained mechanic but not a mechanic by trade. It’s his hobby. He had the defective one out and this new one in in about two hours. He just told me what part to order and he did the rest, so I can’t give any technical advice on it. My check engine light has not come back on and my truck passed it’s smog test. I’m in California where we have to have our diesel vehicles smogged. This part is effective.
